Product Details:
|
| Name: | Nucleic Acid Extractor | Model: | Singu48 |
|---|---|---|---|
| Extration Time: | 9-18 Mins | Magnetic Bead Recovery Rate: | ˃98% |
| Function: | RNA Extraction, DNA Extraction,Nucleic Acid Extraction | Power Supply: | 50Hz/60Hz |
| High Light: | 48Wells Nucleic Acid Extractor,fully automated Nucleic Acid Extractor,fully automated nucleic acid extraction system |
||
High Quality 48 Wells Fully Automated DNA Testing Nucleic Acid Extractor with Open System

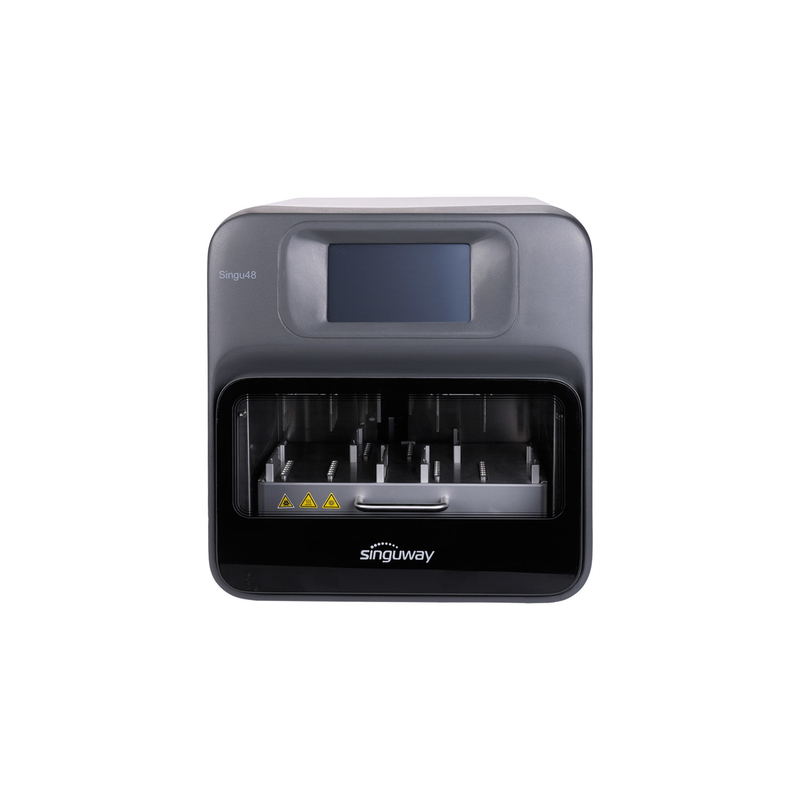

Singu48 Nucleic Acid Extractor is an in vitro diagnostic device that are used with relative reagents to extract and purify nucleic acid from samples for nucleic acid detection.
Principle:
Mix the sample with lysis solution in the kit and placed in the instrument together with the stirrer and other reagents kit. The stirrer (magnetic rod sleeve) is automatically moved by the instrument to transfer the magnetic beads in each reagent for nucleic acid lysis, washing and elution. Finally, nucleic acid products are obtained and nucleic acid extraction is completed.
Product Parameters:
| Items | Parameters |
| Sample Type | Serum, plasma, whole blood, secretions, saliva, tissue fluid, fungi, etc. |
| Sample throughput | 48 samples |
| Extration Volume | 20μL-1000μL |
| Extration Time | 9-18 mins |
| Magnetic bead recovery rate | ˃98% |
| Blending mode | High, medium and low speed are optional |
| CV | ≤3% |
| Reagent Type | Pre-packed reagents |
| Disinfection | Ultraviolet lamp disinfection and pollution-free |
| Display | 7 inch touch screen |
| Program storage number | 30 |
| Dimension | 479*424*450mm(L*W*H) |
| Weight | 31KG |
| Operating environment | humidity:˃30%～85%; temperature:10～32℃ |
| Voltage | AC 100V~240V～, 50/60Hz |
| Power | 400W |
