Product Details:
|
| Sample Capacity: | 32x0.2ml (4x8well, Dual Block) | Heating Temperature Range: | 0-100°C |
|---|---|---|---|
| Weight: | 6.5kg | Sensitivity: | Single Copy Gene |
| Fluorescent Channels: | 4 Channel | Display: | 7 Inch Color Touch Screen |
| High Light: | 32 Wells RT PCR Thermal Cycler,4Channel QPCR RT PCR Thermal Cycler,4Channel Mini QPCR Machine |
||

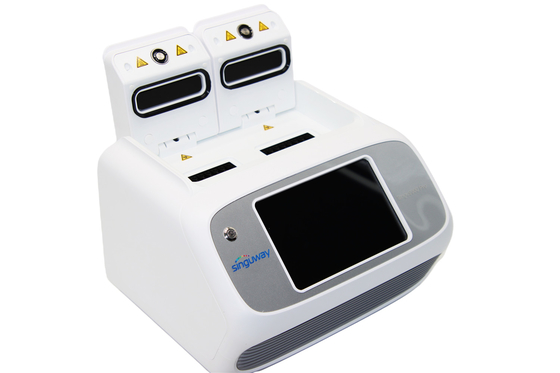

32 wells Analyzer Thermal Cycler Pcr Test Machine Rapid PCR Test Real Time Four Channel RT PCR Analyzer For Hospital
The product combines a variety of advanced technologies : 7. inch high-deinition TFT color touch screen, win10 operating system with analysis software, complete quantative analysis and printing report without computer. It adopts American Marlow custom-made peltier, high sensifivity photoelectric detector and side scan technology, to ensure superior performance and stable detection results.
Features:
1) Up to 4 fluorescence detection channels allowing multiplex PCR.
2) Small size, light weight, easy to carry.
3) Powerful software analysis function, which can be used for Quantitative Analysis, Melting Curve Analysis, Genotyping, etc.
4) 7-inch high-definition TFT color touch screen, and embedded win10 operating system.
5) 20G flash memory can save 40,000 experimental data.
6) Printer as an optional which can print the records directly, no need to connect the computer.
7) Adopting side scan technology, the detection distance is close, and the fluorescence acquisition signal is stable;
8) Black reaction block to avoid background noise.
Specifications:
| Sample capacity |
32x0.2ml (4x8well, dual block) Clear 0.2ml PCR tube/8-tube strips |
Factory Calibrated Dyes |
F1:FAM/SYBR Green l F2:HEX/VIC/JOE/TET F3:ROX F4:CY5 |
| Reaction volume | 10-100ul | Extraction wavelength | 460-628nm |
| Thermal cycle technology | Pelter, liquid circulation refrigeration | Emission wavelength | F1:520-540nm; F2:540-580nm; F3:571-612nm F4:628-692nm |
| Max. Ramp Rate | 8.5°C/s | Sensitivity | Single copy gene |
| Heating temperature range | 0-100°C | Fluorescent channels | 4 channel |
| Temperature accuracy | ±0.2°C | CV | ≤3% |
| Temperature uniformity | ±0.2°C | Dynamic range | 1-10 copies |
| Display | 7 inch color Touch screen | Feature function | Absolute/Relative Quantification,Melting curve,Genotyping |
| Weight | 6.5kg | Size | 30*27*20 |
Q1. Can I have a sample order ?
A: Yes.Welcome to test quality by samples. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days. Mass production time maybe need 7-15 days.
Q3. Can we put our logo on packages and products?If yes ,what you need from us?
A:Yes,we can achieve it by silkscreen ,laser etching on products, and higher quaity printing on package with full color etc. Need your logo Ai Format or EPS.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on it?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
