Product Details:
|
| Sample Type: | Whole Blood, Serum, Plasma, Swab, Sputum, Stool, Etc. | Sample Throughput: | 4 Samples |
|---|---|---|---|
| Reagent Type: | Pre-packed Reagents | Display: | 4.3 Inch Touch Screen |
| Function: | Nucleic Acid Extraction | Power Supply: | 50Hz/60Hz |
| High Light: | 4Samples Nucleic Acid Extractor,60Hz Nucleic Acid Extractor,50Hz nucleic acid extraction equipment |
||

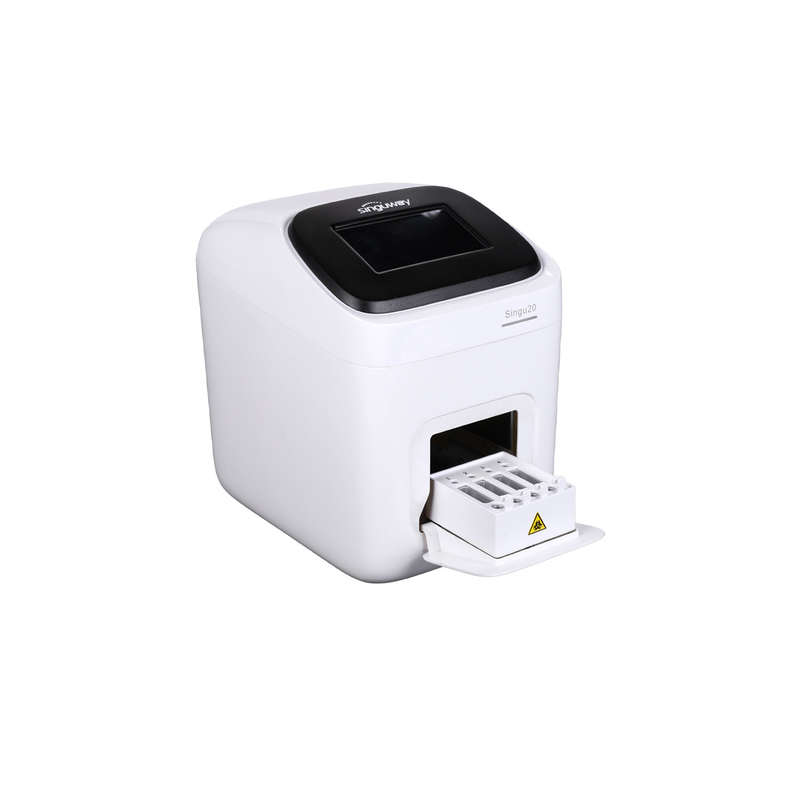

High-quality Mini 4 Samples Nucleic Acid Extraction System for Lab / Hospital
Singu20 series Nucleic Acid Extractor are in vitro diagnostic devices that are used with supporting reagents to extract and purify nucleic acid from samples.
Features:
Short Extraction Time:
It takes 8-13 minutes only from loading sample to completing the extraction.
POCT:
Suitable for various medical environment places, and finish the extraction process at anytime and anywhere.
Close system:
Extraction process are completed in a closed environment, and disinfected by ultraviolet lamp to avoid pollution.
Specifications:
| Items | Parameters |
| Sample Type | Whole blood, serum, plasma, swab, sputum, stool, etc. |
| Sample throughput | 4 samples |
| Extration Volume | 50μL-200μL |
| Extration Time | 8-13 mins |
| Magnetic bead recovery rate | ˃98% |
| Sensitivity | 50~100 copies/ml |
| CV | ≤3% |
| Reagent Type | Pre-packed reagents |
| Disinfection | Ultraviolet lamp disinfection and pollution-free |
| Display | 4.3 inch touch screen |
| Program storage number | 5 |
| Dimension | 190*244*252mm(L*W*H) |
| Weight | 4.7KG |
| Operating environment | humidity:˃30%～85%; temperature:10～32℃ |
| Voltage | AC 100V~240V～, 50/60Hz；DC24V,≤3A |
| Power | 70W |
FAQ
Q: How to place order or pay?
A: You can place order to us directly. We offer you PI with bank information and sales contract, you pay and we ship the product.
Q: What's the warranty for the product?
A: We have one-year warranty of the whole machine since installation; after the warranty, we can continue to provide chargeable maintenance services.
