Product Details:
|
| Type: | Genes & Life Science Equipments,Real-time Quantitative PCR Detection System | Sample Capacity: | 32x0.2mlv(2x16 Well, Double Block) |
|---|---|---|---|
| Consumable: | Clear 0.2ml PCR Tube/8-tube Strips | Reaction Volume: | 15~100uL |
| Instrument Classification: | Class I | Display: | 7 Inch Large Color Touch Panel Screen |
| Application: | Hospital Using,Genetic Testing,Life Science Research | ||
| High Light: | Singuway Real Time PCR Analyzer,6.5kg Real Time PCR Analyzer,6.5kg Nucleic Acid Testing Machine |
||

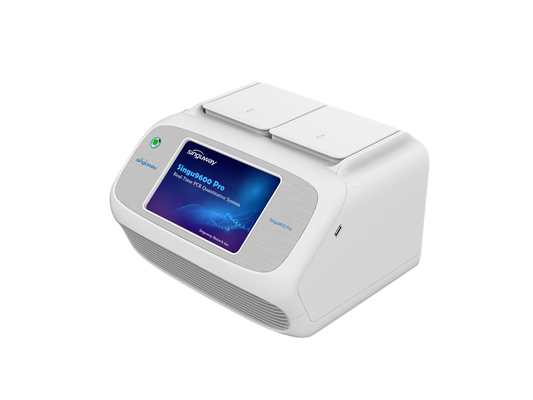

32 Nucleic Acid Testing Machine Fluorescent Mini Real Time PCR Test Instrument
This machine is a poriable fluorescence quantitative PCR instument developed by Medsinglong This product adopts dual-channel and double 8- well blocks, which can run two diferent fles simultaneously.
Features:
1) Up to 4 fluorescence detection channels allowing multiplex PCR.
2) Small size, light weight, easy to carry.
3) Powerful software analysis function, which can be used for Quantitative Analysis, Melting Curve Analysis, Genotyping, etc.
4) 7-inch high-definition TFT color touch screen, and embedded win10 operating system.
5) 20G flash memory can save 40,000 experimental data.
6) Printer as an optional which can print the records directly, no need to connect the computer.
7) Adopting side scan technology, the detection distance is close, and the fluorescence acquisition signal is stable;
8) Black reaction block to avoid background noise.
Specifications:
| Sample capacity |
32x0.2ml (4x8well, dual block) Clear 0.2ml PCR tube/8-tube strips |
Factory Calibrated Dyes |
F1:FAM/SYBR Green l F2:HEX/VIC/JOE/TET F3:ROX F4:CY5 |
| Reaction volume | 10-100ul | Extraction wavelength | 460-628nm |
| Thermal cycle technology | Pelter, liquid circulation refrigeration | Emission wavelength | F1:520-540nm; F2:540-580nm; F3:571-612nm F4:628-692nm |
| Max. Ramp Rate | 8.5°C/s | Sensitivity | Single copy gene |
| Heating temperature range | 0-100°C | Fluorescent channels | 4 channel |
| Temperature accuracy | ±0.2°C | CV | ≤3% |
| Temperature uniformity | ±0.2°C | Dynamic range | 1-10 copies |
| Display | 7 inch color Touch screen | Feature function | Absolute/Relative Quantification,Melting curve,Genotyping |
| Weight | 6.5kg | Size | 30*27*20 |
Q: Can you do OEM service ?
A: We can provide the specific products needed around the world at significantly lower costs.
If you need further information regarding our OEM or Private Label programs, please contact us freely.
Q: How long is your delivery time?
A: Usually, delivery time is 5-15 days depend on the order quantity & inventory.
Q: How about your quality warranty ?
A: Normally all Singuway products are supplied with a warranty of 12 Months from the date of shipment.
Q: What is your terms of payment ?
A: Payment 100% T/T, Western Union, L/C, Trade Assurance, Credit Card ect. in advance ,before shippment.
