Product Details:
|
| Name: | Nucleic Acid Extractor | Model: | Singu32 |
|---|---|---|---|
| Magnetic Bead Recovery Rate: | ˃98% | CV: | ≤3% |
| Sample Capacity: | 20μl-1000μl | Product Name: | Nucleic Acid Purification System |
| High Light: | FluA automatic nucleic acid extraction system,Automatic nucleic acid extraction system,FluB dna extraction equipment |
||
High-quality 32 Samples Lab Nucleic Acid Extraction System for COVID-19 / FluA / FluB

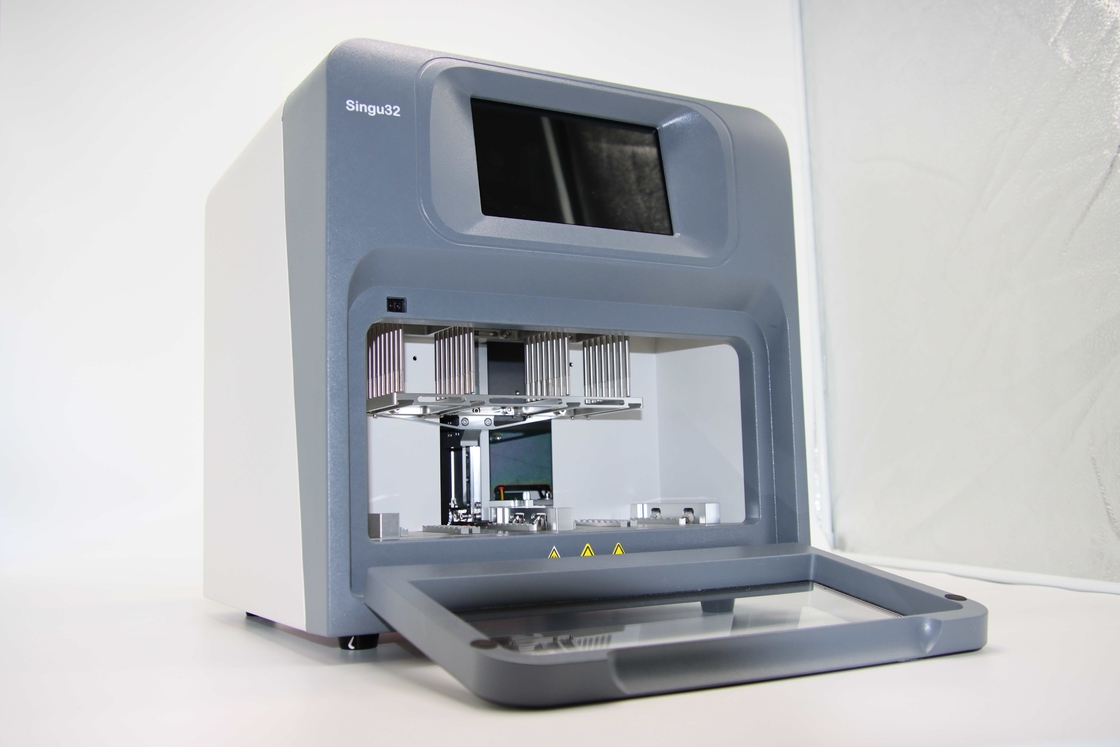

Singu32 Nucleic Acid Extractor is an in vitro diagnostic device that are used with relative reagents to extract and purify nucleic acid from samples for nucleic acid detection. It has the advantages of high automation, fast extraction, stable results and simple operation. With different kinds of nucleic acid extraction reagents(magnetic bead method), It can quickly extract DNA and RNA from animal and plant tissues, blood, body fluids and other samples. It is widely used in scientific research, disease control systems, food safety, clinical monitoring and other fields.
Display screen:
The display screen is a touch LCD screen. All operations of the instrument are operated through the touch screen. With the prompt of the interface, the user can click manually to complete the required function.
Features:
1. 7 inch touch screen, attractive and compact shape, Unique sampling design
2. Automatic, up to 48 samples extracted at a time in 9-18 minutes
3. High sensitivity, low magnetic bead extraction residue, high recovery rate of magnetic beads
4. Precise temperature control, high extraction efficiency and purity extraction, built-in UV sterilization without pollution
5. Open system, supporting virious magnetic beads-based extraction reagents, widely used
Product Parameters:
| Items | Parameters |
| Sample Type | Serum, plasma, whole blood, secretions, saliva, tissue fluid, fungi, etc. |
| Sample throughput | 32 samples |
| Extration Volume | 20μL-1000μL |
| Extration Time | 9-18 mins |
| Magnetic bead recovery rate | ˃98% |
| Blending mode | High, medium and low speed are optional |
| CV | ≤3% |
| Reagent Type | Pre-packed reagents |
| Disinfection | Ultraviolet lamp disinfection and pollution-free |
| Display | 7 inch touch screen |
| Program storage number | 200 |
| Dimension | 380*370*400mm(L*W*H) |
| Weight | 23KG |
| Operating environment | humidity:˃30%～85%; temperature:10～32℃ |
| Voltage | AC 100V~240V～, 50/60Hz |
| Power | 500W |
FAQ:
Q: OEM and ODM is available?
A: Yes,OEM and ODM are available for us. But the trademark authorization letter should be supplied.
Q: What is the delivery time?
A: It depends on your order, usually it is under 15 working days once receiving your deposit.
