Product Details:
|
| Sample Type: | Whole Blood, Serum, Plasma, Swab, Sputum, Stool, Etc. | Sample Throughput: | 4 Samples |
|---|---|---|---|
| Sensitivity: | 50~100 Copies/ml | CV: | ≤3% |
| Power Supply: | 50Hz/60Hz | Functions: | RNA Extraction |
| High Light: | MSDS Nucleic Acid Extractor,Lightweight Nucleic Acid Extractor,Lightweight DNA Extraction Instrument |
||

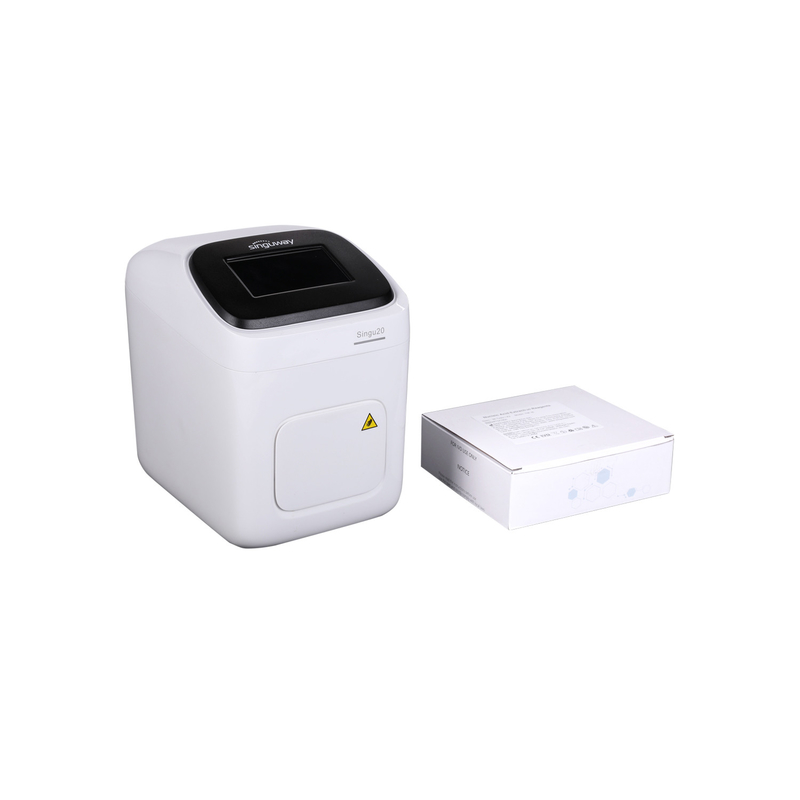

High-quality Mini Medical Lab Rapid Nucleic Acid Extractor for COVID-19 / HIV
Reagent Module:
Reagent module is used as the carrier of stirrerr, pyrolysis solution and other reagents. It is transported to the instrument for nucleic acid extraction. Per sample reagents include stirrer, lysis buffer, washing buffer, Magnetic bead solution, and elution buffer.
Connect Power supply:
Insert the DC plug of the power adapter into the power socket at the back of the extractor, and then insert the AC connector of the power adapter into the power socket which should be well grounding. The specified power cord and adapter used only and cannot be replaced or disassembled.
Specifications:
| Items | Parameters |
| Sample Type | Whole blood, serum, plasma, swab, sputum, stool, etc. |
| Sample throughput | 4 samples |
| Extration Volume | 50μL-200μL |
| Extration Time | 8-13 mins |
| Magnetic bead recovery rate | ˃98% |
| Sensitivity | 50~100 copies/ml |
| CV | ≤3% |
| Reagent Type | Pre-packed reagents |
| Disinfection | Ultraviolet lamp disinfection and pollution-free |
| Display | 4.3 inch touch screen |
| Program storage number | 5 |
| Dimension | 190*244*252mm(L*W*H) |
| Weight | 4.7KG |
| Operating environment | humidity:˃30%～85%; temperature:10～32℃ |
| Voltage | AC 100V~240V～, 50/60Hz；DC24V,≤3A |
| Power | 70W |
