Product Details:
|
| Sample Type: | Whole Blood, Serum, Plasma, Swab, Sputum, Stool, Etc. | Sample Throughput: | 4 Samples |
|---|---|---|---|
| Extration Time: | 8-13 Mins | Sensitivity: | 50~100 Copies/ml |
| Function: | Nucleic Acid Extraction | Sample Capacity: | 20μl-1000μl |
| High Light: | 50μL Nucleic Acid Extraction Device,Automated nucleic acid extraction device,200μL Automated DNA Extraction System |
||

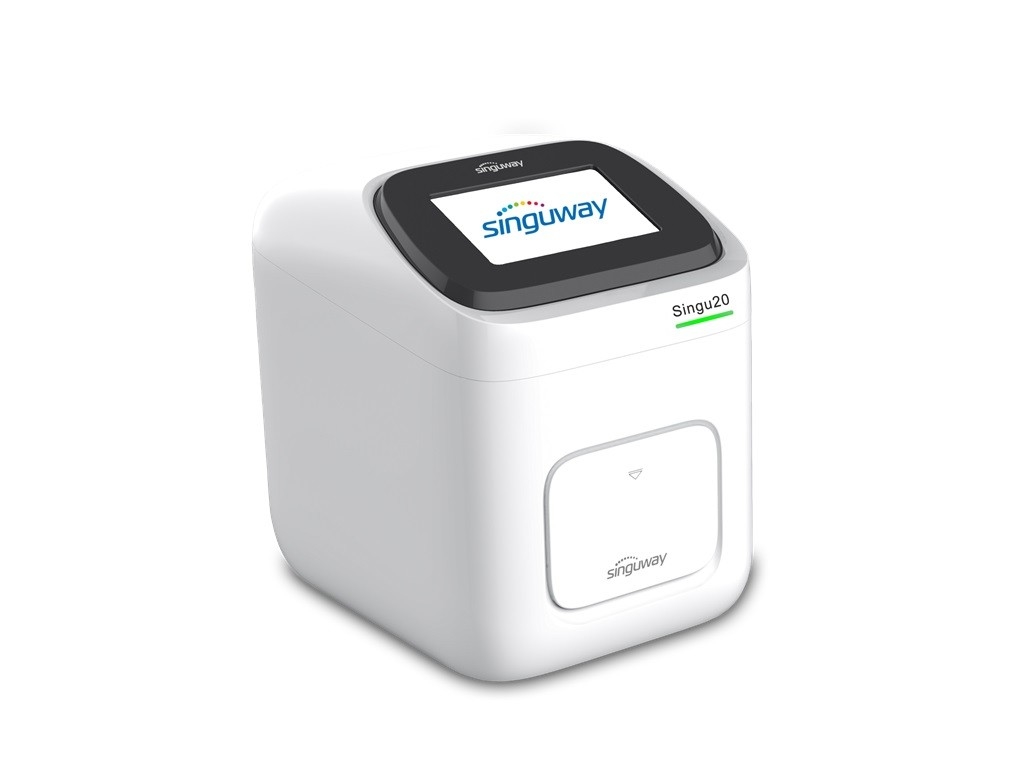

Hot-selling Mini Portable COVID-19 Nucleic Acid Extraction System with CE / ISO13485
Singu20 Nucleic Acid Extractor is matched with the first single samples nucleic acid extraction reagents(magnetic bead method) at home and abroad, it only needs 8-13 minutes to finish the nucleic acid extraction and purification.
Principle:
Mix the sample with lysis solution in the kit and placed in the instrument together with the ( stirrer) and other reagents kit. The stirrer is automatically loaded by the instrument to transfer the magnetic beads in each reagent for nucleic acid lysis, washing and elution. Finally, nucleic acid products are obtained and nucleic acid extraction is completed.
Features:
Specifications:
| Items | Parameters |
| Sample Type | Whole blood, serum, plasma, swab, sputum, stool, etc. |
| Sample throughput | 4 samples |
| Extration Volume | 50μL-200μL |
| Extration Time | 8-13 mins |
| Magnetic bead recovery rate | ˃98% |
| Sensitivity | 50~100 copies/ml |
| CV | ≤3% |
| Reagent Type | Pre-packed reagents |
| Disinfection | Ultraviolet lamp disinfection and pollution-free |
| Display | 4.3 inch touch screen |
| Program storage number | 5 |
| Dimension | 190*244*252mm(L*W*H) |
| Weight | 4.7KG |
| Operating environment | humidity:˃30%～85%; temperature:10～32℃ |
| Voltage | AC 100V~240V～, 50/60Hz；DC24V,≤3A |
| Power | 70W |
FAQ
Q.Who are we?
A: We are a professional molecular diagnosis company in China with scientific research, development, production, sales and service.
Q: What's the warranty for the product?
A: We have one-year warranty of the whole machine since installation; after the warranty, we can continue to provide chargeable maintenance services.
