Product Details:
|
| Method: | Magnetic Bead Method | Sample Type: | Whole Blood, Serum, Plasma, Swab, Sputum, Stool, Etc. |
|---|---|---|---|
| Sample Throughput: | 4 Samples | Extration Volume: | 50μl~200μl |
| Functions: | DNA RNA Extraction | Product Name: | Nucleic Acid Extraction System |
| High Light: | ISO9001 Nucleic Acid Purification System,Automated Nucleic Acid Purification System,ISO9001 DNA RNA Extraction System |
||

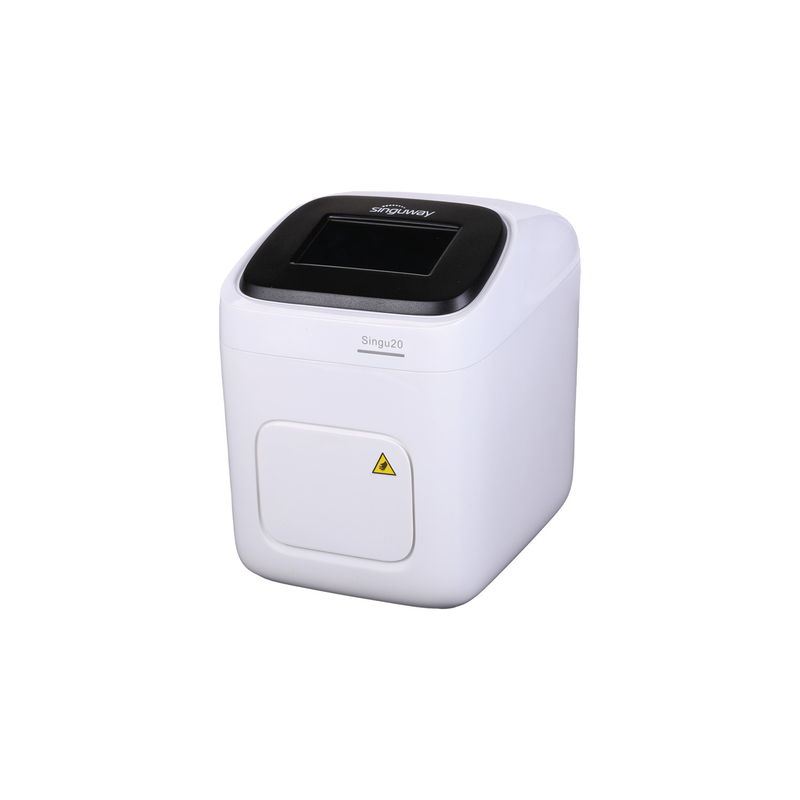

Hot-selling Medical 4 Samples Nucleic Acid Extractor with CE / ISO13485
Singu20 series Nucleic Acid Extractor are in vitro diagnostic devices that are used with supporting reagents to extract and purify nucleic acid from samples.
Extraction Technology
During the nucleic acid extraction process, the magnetic beads binding principle is used to adsorb, transfer, and purify nucleic acids through special magnetic beads to automatically complete the nucleic acid extraction.
Features:
Specifications:
| Items | Parameters |
| Sample Type | Whole blood, serum, plasma, swab, sputum, stool, etc. |
| Sample throughput | 4 samples |
| Extration Volume | 50μL-200μL |
| Extration Time | 8-13 mins |
| Magnetic bead recovery rate | ˃98% |
| Sensitivity | 50~100 copies/ml |
| CV | ≤3% |
| Reagent Type | Pre-packed reagents |
| Disinfection | Ultraviolet lamp disinfection and pollution-free |
| Display | 4.3 inch touch screen |
| Program storage number | 5 |
| Dimension | 190*244*252mm(L*W*H) |
| Weight | 4.7KG |
| Operating environment | humidity:˃30%～85%; temperature:10～32℃ |
| Voltage | AC 100V~240V～, 50/60Hz；DC24V,≤3A |
| Power | 70W |
FAQ
Q.Why choose Singuway?
A: We are a professional molecular diagnosis company in China. Meanwhile, we provide OEM and ODM service to our clients.
Q.What is the delivery time?
A. It depends on your order, usually it is under 5-8 working days once receiving your deposit.
