Product Details:
|
| Type: | Genes & Life Science Equipments,Real-time Quantitative PCR Detection System | Sample Capacity: | 32x0.2ml (2x16 Well, Double Block) |
|---|---|---|---|
| Reaction Volume: | 15~100uL | Fluorescent Channels: | 4 Channel |
| Display: | 7 Inch Large Color Touch Panel Screen | Application: | Hospital Using,Genetic Testing,Life Science Research |
| Temperature Accuracy: | ±0.2°C | Sensitivity: | Single Copy Gene |
| High Light: | ISO13485 Quantitative PCR Detection System,Fluorescence 4Channel PCR Detection System,ISO13485 4Channel Real Time PCR Cycler |
||

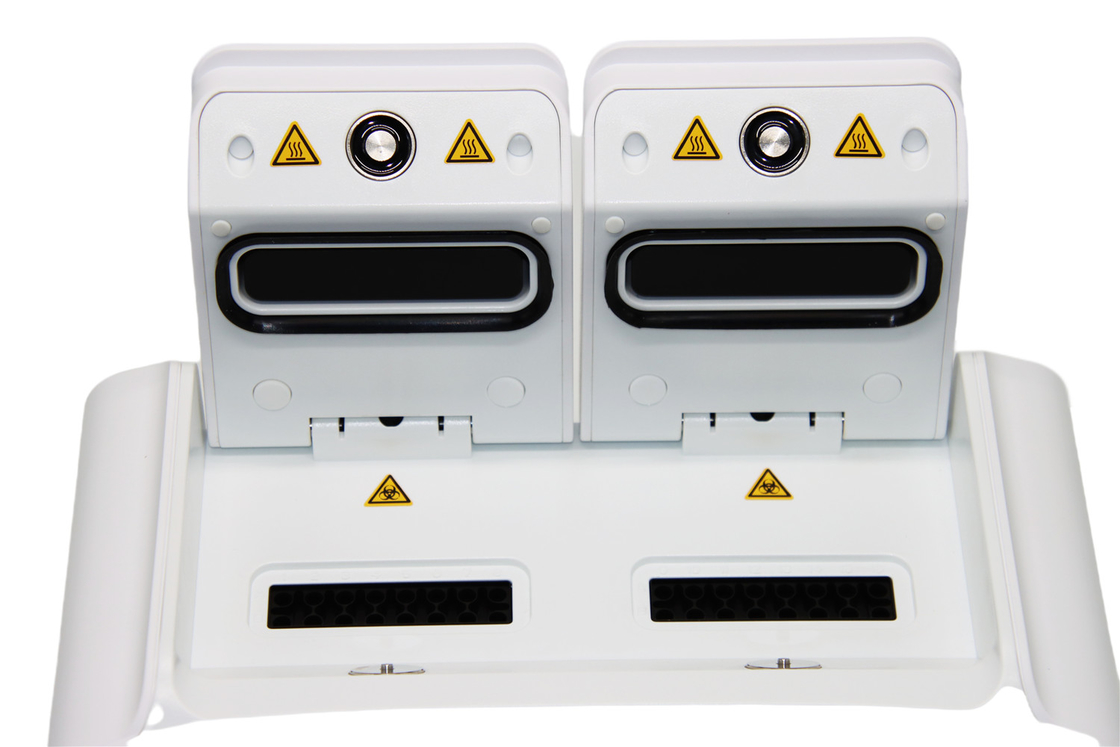

Real-Time PCR Machine 4 Channels Fluorescent Rt Thermocycler PCR Machine
The product combines a variety of advanced technologies: 7-inch high-definition TFT color touch screen, win10 operating system
with analysis software, complete quantitative analysis and printing report without computer. It adopts American Marlow custom-made
peltier, high sensitivity photoelectric detector and side scan technology, to ensure superior performance and stable detection
results.
Features:
1) Up to 4 fluorescence detection channels allowing multiplex PCR.
2) Small size, light weight, easy to carry.
3) Powerful software analysis function, which can be used for Quantitative Analysis, Melting Curve Analysis, Genotyping, etc.
4) 7-inch high-definition TFT color touch screen, and embedded win10 operating system.
5) 20G flash memory can save 40,000 experimental data.
6) Printer as an optional which can print the records directly, no need to connect the computer.
7) Adopting side scan technology, the detection distance is close, and the fluorescence acquisition signal is stable;
8) Black reaction block to avoid background noise.
Specifications:
| Sample capacity |
32x0.2ml (4x8well, dual block) Clear 0.2ml PCR tube/8-tube strips |
Factory Calibrated Dyes |
F1:FAM/SYBR Green l F2:HEX/VIC/JOE/TET F3:ROX F4:CY5 |
| Reaction volume | 10-100ul | Extraction wavelength | 460-628nm |
| Thermal cycle technology | Pelter, liquid circulation refrigeration | Emission wavelength | F1:520-540nm; F2:540-580nm; F3:571-612nm F4:628-692nm |
| Max. Ramp Rate | 8.5°C/s | Sensitivity | Single copy gene |
| Heating temperature range | 0-100°C | Fluorescent channels | 4 channel |
| Temperature accuracy | ±0.2°C | CV | ≤3% |
| Temperature uniformity | ±0.2°C | Dynamic range | 1-10 copies |
| Display | 7 inch color Touch screen | Feature function | Absolute/Relative Quantification,Melting curve,Genotyping |
| Weight | 6.5kg | Size | 30*27*20 |
Application:
the product can be used for rea-time detection in pasture, forest farm, breeding farm and water source.
It is used for rapid diagnosis of disaster and epidemic disease . inspection and quarantine in the feld of food safety. and scientific research in biological laboratories.
Q:Who are we?
A: Singuway Biotech Inc. is a leading molecular diagnosis company. It is a comprehensive Hi-tech company with scientific research, development, production,sales and service. Singuway provides whole solution of molecular diagnosis with disposable sampling kit, nucleic acid extraction system, and nucleic acid detection system, overall COVID-19 diagnostic solution. These products are widely applied to life medical, food hygiene, environmental testing, etc.
Q:How can we guarantee quality?
A:Always a pre-production sample before mass production; Always final Inspection before shipment.
Q: Can you do OEM service ?
A: We can provide the specific products needed around the world at significantly lower costs.
If you need further information regarding our OEM or Private Label programs, please contact us freely.
Q: What is your terms of payment ?
A: Payment 100% T/T, Western Union, L/C, Trade Assurance, Credit Card ect. in advance ,before shippment.
Q: How long is your delivery time?
A: Usually, delivery time is 5-15 days depend on the order quantity & inventory.
Q: How about your quality warranty ?
A: Normally all Singuway products are supplied with a warranty of 12 Months from the date of shipment.
