Product Details:
|
| Type: | Real-time PCR Detection System | Instrument Classification: | Class I |
|---|---|---|---|
| Sample Capacity: | 0.2Ml PCR Tubes | Product Name: | PCR Detection System,Real Time Pcr Thermal Cycler |
| Temperature Range: | 0~100℃ | Sample Volume: | 10~100 μL |
| High Light: | Singuway Real Time PCR Detection System,32Channels PCR Detection System,RNA DNA Analyzer Machine |
||

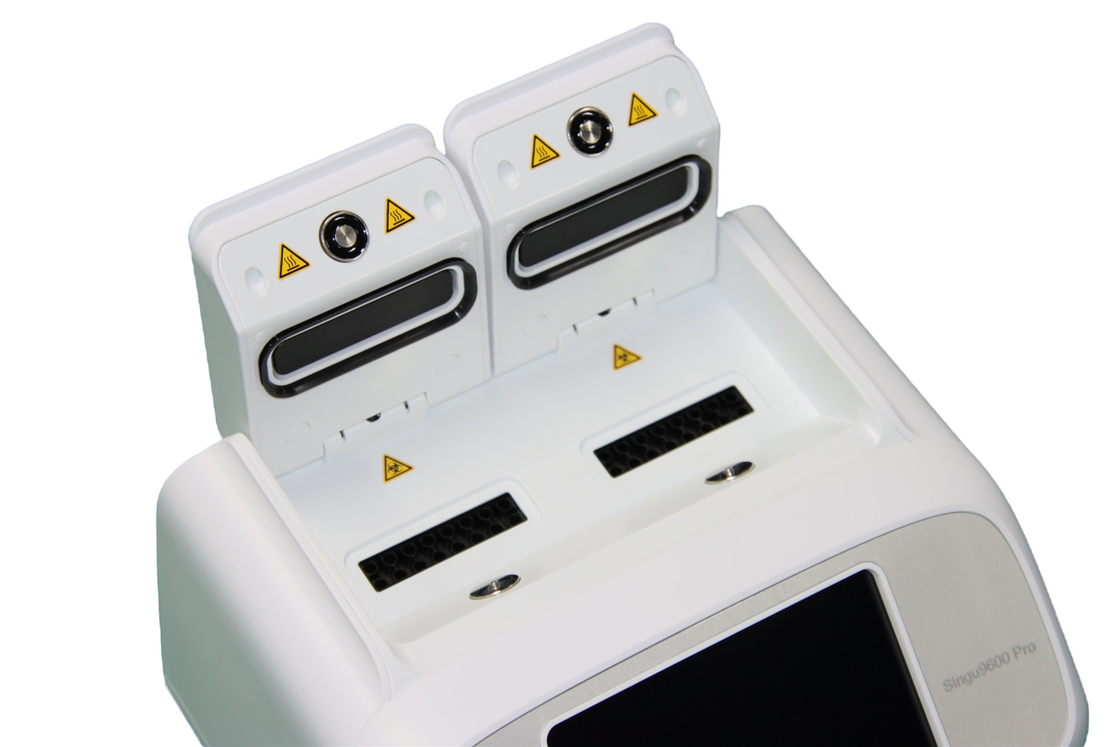

Real Time PCR Detection System 32 Channels DNA RNA Analyer Machine
The product can be used for real-time detection in pasture, forest farm, breeding farm and water source. It
is used for rapid diagnosis of disaster and epidemic disease, inspection and quarantine in the field of food safety, and
scientific research in biological laboratories.
Features:
1) Up to 4 fluorescence detection channels allowing multiplex PCR.
2) Small size, light weight, easy to carry.
3) Powerful software analysis function, which can be used for Quantitative Analysis, Melting Curve Analysis, Genotyping, etc.
4) 7-inch high-definition TFT color touch screen, and embedded win10 operating system.
5) 20G flash memory can save 40,000 experimental data.
6) Printer as an optional which can print the records directly, no need to connect the computer.
7) Adopting side scan technology, the detection distance is close, and the fluorescence acquisition signal is stable;
8) Black reaction block to avoid background noise.
9) Adopt the same acquisition optical path to improve the repeatability.
10) LED light source has the advantage of energy saving, environmental protection, long service life and maintenance free.
11) The electromagnetic lock cover technology prevents the hot lid from accidentally opening.
12) Front shutdown button makes file data more secure.
13) Constant current control circuit makes power output smooth and extends Peltier life, also improves temperature control accuracy.
14) It has the protection functions of over-current, over temperature, power-off data self recovery, etc.
15) Forward and backward air vent design, can be placed side by side, saving laboratory space.
16) It can be supported for battery power supply, suitable for quick inspection and field inspection.
Specifications:
| Sample capacity |
32x0.2ml (4x8well, dual block) Clear 0.2ml PCR tube/8-tube strips |
Factory Calibrated Dyes |
F1:FAM/SYBR Green l F2:HEX/VIC/JOE/TET F3:ROX F4:CY5 |
| Reaction volume | 10-100ul | Extraction wavelength | 460-628nm |
| Thermal cycle technology | Pelter, liquid circulation refrigeration | Emission wavelength | F1:520-540nm; F2:540-580nm; F3:571-612nm F4:628-692nm |
| Max. Ramp Rate | 8.5°C/s | Sensitivity | Single copy gene |
| Heating temperature range | 0-100°C | Fluorescent channels | 4 channel |
| Temperature accuracy | ±0.2°C | CV | ≤3% |
| Temperature uniformity | ±0.2°C | Dynamic range | 1-10 copies |
| Display | 7 inch color Touch screen | Feature function | Absolute/Relative Quantification,Melting curve,Genotyping |
| Weight | 6.5kg | Size | 30*27*20 |
