Product Details:
|
| Type: | Genes & Life Science Equipments | Sample Capacity: | 32x0.2mlv(2x16 Well, Double Block) |
|---|---|---|---|
| Reaction Volume: | 15~100uL | Max. Ramp Rate: | 8.5°C/s |
| Heating Temperature Range: | 0-100°C | Temperature Accuracy: | ±0.2°C |
| Display: | 7 Inch Large Color Touch Panel Screen | Thermal Cycle Technology: | Pelter, Liquid Circulation Refrigeration |
| Application: | Hospital Using,Genetic Testing,Life Science Research | ||
| High Light: | 2x16 well Touchscreen quantitative pcr instrument,CE 20G Rapid fluorescence quantitative pcr instrument,2x16 well Touchscreen pcr test instrument |
||

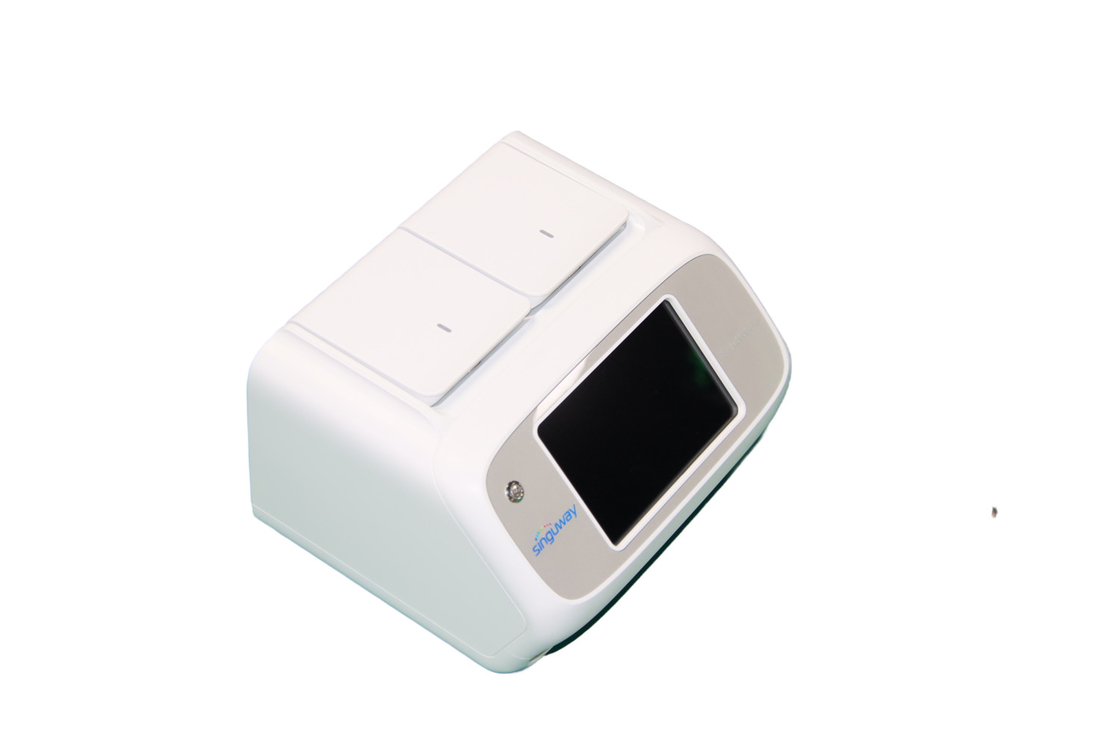

New Rapid Real-Time Quantitative PCR Machine Test PCR With CE Certificate
Thermal cycler for testing rt PCR Real-Time PCR System is a portable fluorescence quantitative PCR instrument developed by
Bio-Gener company. This product adopts dual-channel and double 8-well blocks, which can run two different files simultaneously.
Features:
1. Double channels and double 8-well blocks design, can run two different
2. Adopt the same acquisition optical path to
improve the repeatability programs at the same time.
3. LED light source has the advantage of energy saving, environmental
4. Smal size, light weight, easy to carry protection, long service life and maintenance free.
5. Powerful software analysis function, which
can be used for Quantitative
6. The electromagnetic lock cover technology prevents the hot lid from Analysis, Melting Curve
Analysis, Genotyping, etc.accidentally opening.
7. 7-inch high-defnition TFT color touch screen, and embedded win10
8. Front shutdown button makes file data more secure . operating system. Constant current control circuit makes power output smooth and
extends
9. 20G flash memory can save 40 ,000 experimental data. Peltier life, also improves temperature control accuracy.
10. Printer as an optional which can print the records directly, no need to
11. It has the protection functions of over-current, over temperature. power- connect the computer off data self recovery, etc.
12. Adopting side scan technology, the detection distance is close, and the 13.Forward and backward air vent design, can be placed side by side fluorescence acquisition signal is
stable saving laboratory space. 14.Black reaction block to avoid background noise.
Specifications:
| Sample capacity |
32x0.2ml (4x8well, dual block) Clear 0.2ml PCR tube/8-tube strips |
Factory Calibrated Dyes |
F1:FAM/SYBR Green l F2:HEX/VIC/JOE/TET F3:ROX F4:CY5 |
| Reaction volume | 10-100ul | Extraction wavelength | 460-628nm |
| Thermal cycle technology | Pelter, liquid circulation refrigeration | Emission wavelength | F1:520-540nm; F2:540-580nm; F3:571-612nm F4:628-692nm |
| Max. Ramp Rate | 8.5°C/s | Sensitivity | Single copy gene |
| Heating temperature range | 0-100°C | Fluorescent channels | 4 channel |
| Temperature accuracy | ±0.2°C | CV | ≤3% |
| Temperature uniformity | ±0.2°C | Dynamic range | 1-10 copies |
| Display | 7 inch color Touch screen | Feature function | Absolute/Relative Quantification,Melting curve,Genotyping |
| Weight | 6.5kg | Size | 30*27*20 |
FAQ
1.Who are we?
Singuway Biotech Inc. is a leading molecular diagnosis company. It is a comprehensive Hi-tech company with scientific research, development, production,sales and service. Singuway provides whole solution of molecular diagnosis with disposable sampling kit, nucleic acid extraction system, and nucleic acid detection system, overall COVID-19 diagnostic solution. These products are widely applied to life medical, food hygiene, environmental testing, etc.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3.What can you buy from us?
Virus Sampling Kit, Nucleic Acid Extractor, Nucleic Acid Releaser(for PCR), Real-time PCR Quantitative System and COVID-19 PCR Test kit, etc.
4. Why should you buy from us not from other suppliers?
With the international leading PCR composite probe technology and visual biochip technology platform, Singuway Biotech Inc., which has the advanced PCR and biochip production line, now forms a joint research center with top medical research institutions in China.
