Product Details:
|

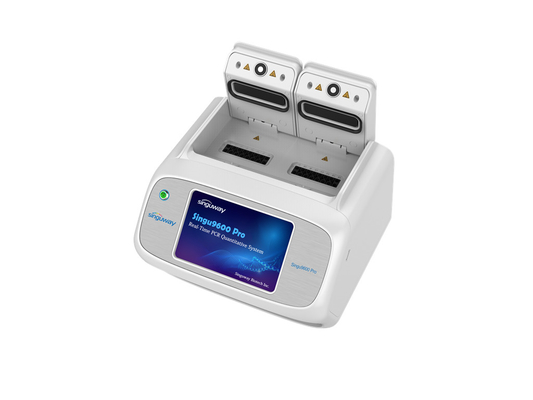

| Type: | Real-time Quantitative PCR Detection System | Product Name: | Real Time PCR Analyzer |
|---|---|---|---|
| Sample Capacity: | 32*0.2ml | Reaction Volume: | 10-100ul |
| Extraction Wavelength: | 460-628nm | Application: | Hospital Using |
| High Light: | 4x8well Real Time PCR Analyzer,32x0.2ml Real Time PCR Analyzer,32x0.2ml rapid pcr test machine |
||
the product can be used for rea-time detection in pasture, forest farm, breeding farm and water source.
It is used for rapid diagnosis of disaster and epidemic disease . inspection and quarantine in the feld of food safety. and scientific research in biological laboratories.
Features:
1) Up to 4 fluorescence detection channels allowing multiplex PCR.
2) Small size, light weight, easy to carry.
3) Powerful software analysis function, which can be used for Quantitative Analysis, Melting Curve Analysis, Genotyping, etc.
4) 7-inch high-definition TFT color touch screen, and embedded win10 operating system.
5) 20G flash memory can save 40,000 experimental data.
6) Printer as an optional which can print the records directly, no need to connect the computer.
7) Adopting side scan technology, the detection distance is close, and the fluorescence acquisition signal is stable;
8) Black reaction block to avoid background noise.
9) Adopt the same acquisition optical path to improve the repeatability.
10) LED light source has the advantage of energy saving, environmental protection, long service life and maintenance free.
11) The electromagnetic lock cover technology prevents the hot lid from accidentally opening.
12) Front shutdown button makes file data more secure.
13) Constant current control circuit makes power output smooth and extends Peltier life, also improves temperature control accuracy.
14) It has the protection functions of over-current, over temperature, power-off data self recovery, etc.
15) Forward and backward air vent design, can be placed side by side, saving laboratory space.
16) It can be supported for battery power supply, suitable for quick inspection and field inspection.
Specifications:
| Sample capacity |
32x0.2ml (4x8well, dual block) Clear 0.2ml PCR tube/8-tube strips |
Factory Calibrated Dyes |
F1:FAM/SYBR Green l F2:HEX/VIC/JOE/TET F3:ROX F4:CY5 |
| Reaction volume | 10-100ul | Extraction wavelength | 460-628nm |
| Thermal cycle technology | Pelter, liquid circulation refrigeration | Emission wavelength | F1:520-540nm; F2:540-580nm; F3:571-612nm F4:628-692nm |
| Max. Ramp Rate | 8.5°C/s | Sensitivity | Single copy gene |
| Heating temperature range | 0-100°C | Fluorescent channels | 4 channel |
| Temperature accuracy | ±0.2°C | CV | ≤3% |
| Temperature uniformity | ±0.2°C | Dynamic range | 1-10 copies |
| Display | 7 inch color Touch screen | Feature function | Absolute/Relative Quantification,Melting curve,Genotyping |
| Weight | 6.5kg | Size | 30*27*20 |
Q1. Can I have a sample order ?
A: For reagent or sampling kit, we are delighted to provide free sample service.
Q2. What about the lead time?
A:Sample needs 3-5 days. Mass production time needs 20-35days.
Q3. Can we put our logo on packages and products?
A: It might depends on the order qty. Please discuss with us before the order.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on it?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
